HPLC Testing for Peptide Purity: How to Read Results and Their Limits

Quick answer: Reverse-phase HPLC separates a peptide sample under a declared method and records detector response as components elute. A reported 99.2% area means the assigned main peak contributed 99.2% of the included detector-response area under those conditions. It does not by itself establish molecular identity, peptide content, supplied amount, potency, sterility, safety, or suitability for human use; those questions require separate, fit-for-purpose evidence.

That distinction is the key to interpreting HPLC peptide testing. A chromatogram can be highly informative when the method, integration rules, system-suitability results, and peak assignment are available. The same percentage becomes ambiguous when it is detached from those controls or treated as a universal measure of everything in a vial.

Four Different Questions: Purity, Identity, Content, and Amount

A reliable interpretation begins by naming the measurand. Four values that are often collapsed into the word purity answer different questions and may require different procedures, standards, and calculations.

Measurements that an HPLC area percentage cannot replace

Question	What the result describes	What supports it	What it does not automatically establish
Chromatographic purity	The assigned main peak’s share of included detector response under one declared separation and integration method.	Trace, peak table, method conditions, integration rules, suitability results, and assignment evidence.	Identity, absolute content, supplied quantity, potency, sterility, or safety.
Molecular identity	Whether the material is consistent with the intended molecular entity.	A sufficiently specific identification procedure or complementary evidence such as reference behavior and fit-for-purpose MS data.	Complete sequence, stereochemistry, positional isomers, or absolute content from an intact-mass match alone.
Peptide content	How much peptide, on a defined basis, is present in the weighed or measured material.	A quantitative assay with standards, calibration, response correction, and a declared calculation basis.	The same value as uncorrected HPLC area normalization.
Supplied amount	The mass or quantity placed in a container, including the declared basis for that amount.	Appropriate fill, gravimetric, or other quantity-control records.	Chromatographic purity or identity.

The phrase 99.2% HPLC area is therefore more precise than saying simply 99.2% pure. It identifies both the signal basis and the analytical context. If a report does not disclose what was included in the denominator, which detector and wavelength were used, or how the main peak was assigned, the percentage cannot carry the same interpretive weight.

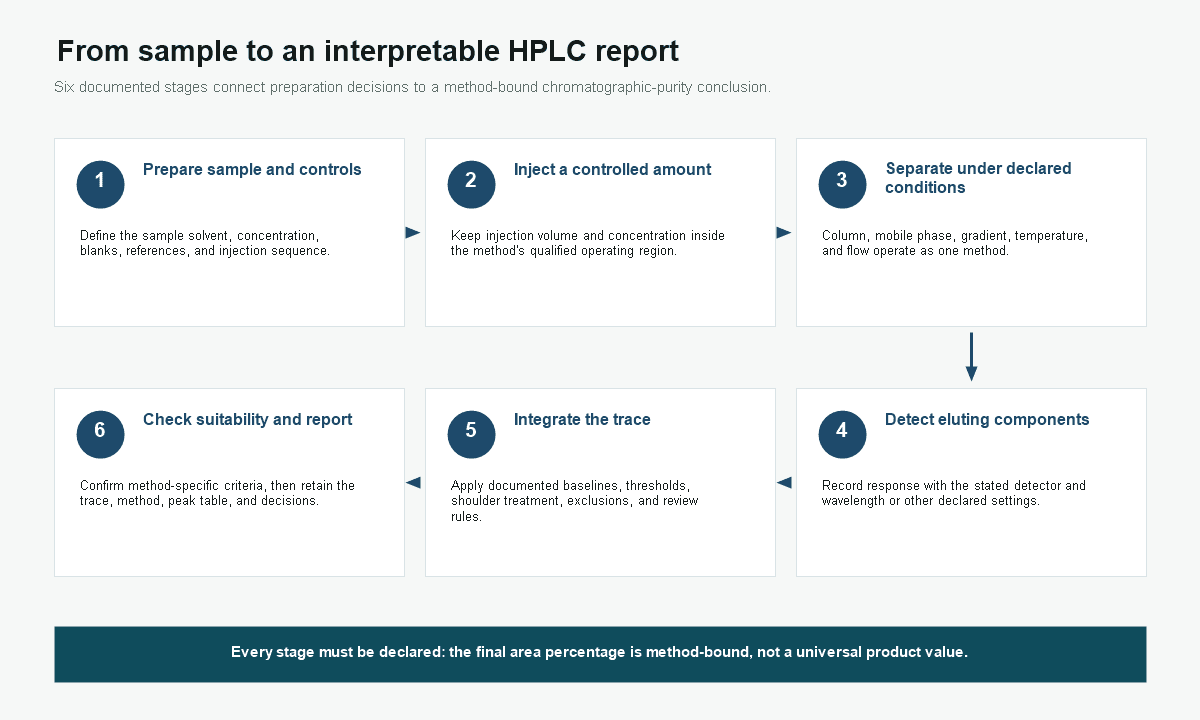

How RP-HPLC Separates a Peptide Sample

Reverse-phase high-performance liquid chromatography is a separation procedure. The sample moves with a liquid mobile phase through a column containing a comparatively nonpolar stationary phase. Components that interact differently with those phases travel at different effective rates and can emerge at different retention times. The current USP General Chapter <621> Chromatography describes the general two-phase basis of chromatographic separation and system suitability.

1. Prepare the sample and controls. The procedure defines the sample solvent, concentration, reference or sensitivity solutions, blanks, and injection sequence. Sample instability or a mismatched solvent can change the trace before separation is interpreted.
2. Inject a controlled amount. Injection volume and concentration must stay inside the method’s qualified operating region. Overload can distort peak shape or obscure nearby components.
3. Separate under declared conditions. Column chemistry, dimensions, pore size, mobile phases, ion-pairing or acidic modifier, pH where relevant, gradient, dwell volume, temperature, and flow work together as one method.
4. Detect the eluting components. A UV detector records response at a stated wavelength, or another declared detector produces its own signal. Response is not guaranteed to be equal per unit mass for every component.
5. Integrate the trace. Software and analyst-reviewed rules set baselines, distinguish peaks and shoulders, apply thresholds, and determine which signals enter the calculation.
6. Check suitability before accepting the result. The run must meet method-specific criteria for the features needed to make the intended decision.

Retention cannot be reduced to hydrophobicity alone. Sequence context, charge, ion pairing, stationary-phase selectivity, organic solvent, temperature, and other method variables can alter peptide behavior. Mant & Hodges (2006) ran two four-peptide series spanning +1 to +4 net charge against anionic ion-pairing reagents at 2-50 mM: apparent Lys and Arg hydrophilicity rose with peptide hydrophobicity, while apparent Ile hydrophobicity fell as net positive charge increased (in-vitro synthetic-peptide model). Mant et al. (2010) later compared C18, C8, phenylhexyl, polar-embedded and polar-endcapped columns using 12-residue model peptides at pH 2; that study reports selectivity differences and no single quantitative endpoint. C18 is common, but it is not a universal answer for every peptide or critical impurity pair.

How to Read a Peptide HPLC Chromatogram

A chromatogram plots detector response against time. The horizontal axis normally shows retention time; the vertical axis shows the detector signal in declared units. A peak is a signal feature, not an identity certificate. Its interpretation depends on the separation, detector, blank, reference materials, and the rules used to assign and integrate it.

• Retention time records when a component’s signal appears under the stated conditions. It can support an assignment within a validated procedure, but a time match alone is not sufficiently specific proof of identity.
• Peak area is the integrated detector response between chosen boundaries. It is not automatically a mass measurement.
• Baseline placement changes where integration begins and ends. Drift, noise, unresolved background, or inconsistent baselines can change small-peak areas.
• Shoulders and partially resolved peaks may indicate more than one contribution. Whether software splits or combines them changes the reported areas.
• Co-elution can hide multiple components inside one apparent peak. Main-peak dominance therefore does not prove that only one molecular species contributes to that signal.
• Blank or system peaks may be excluded when the method and blank review justify the decision. Their treatment must be documented rather than silently omitted.

FDA’s Analytical Procedures and Methods Validation guidance calls for operating parameters, the injection sequence, blanks and controls, suitability checks, integration methods, representative formulas, response factors where applicable, and data-reporting detail. Those fields turn a picture of a trace into an interpretable analytical record.

What the Minor Peaks Usually Are

Minor peaks are usually structurally related species, not unrelated contaminants. Deletion sequences arise when a solid-phase coupling step is incomplete and the chain lacks one or more residues; truncation and fragmentation products arise similarly or through later degradation. Deamidation products form at asparagine and glutamine residues and alter charge and hydrophobicity. Oxidation products form at methionine and cysteine residues and shift retention and mass. Each class is a candidate assignment until mass-based evidence supports it.

Additional reported findings

Material	Model	Endpoint and reported result	Source
Synthetic human C-peptide	In-vitro LC-HRMS characterization of a reference material	Impurity burden: more than 65 impurities quantified, total mass fraction 83.3 mg/g (expanded uncertainty 3.0 mg/g, k = 2)	PMID 29862433
Cbf-14 synthetic antimicrobial peptide	In-vitro HPLC-QTOF-MS/MS profiling with stress testing	Degradation inventory: 1 process-related impurity and 32 degradation products, including 15 hydrolysates, 9 isomeric species, and 6 oxidized species	PMID 35840670
Octreotide, a cyclic octapeptide	In-vitro two-dimensional HPLC-CE impurity separation	Impurity-profile completeness: more comprehensive than either technique used separately; the paper reports no single quantitative endpoint	PMID 23061275

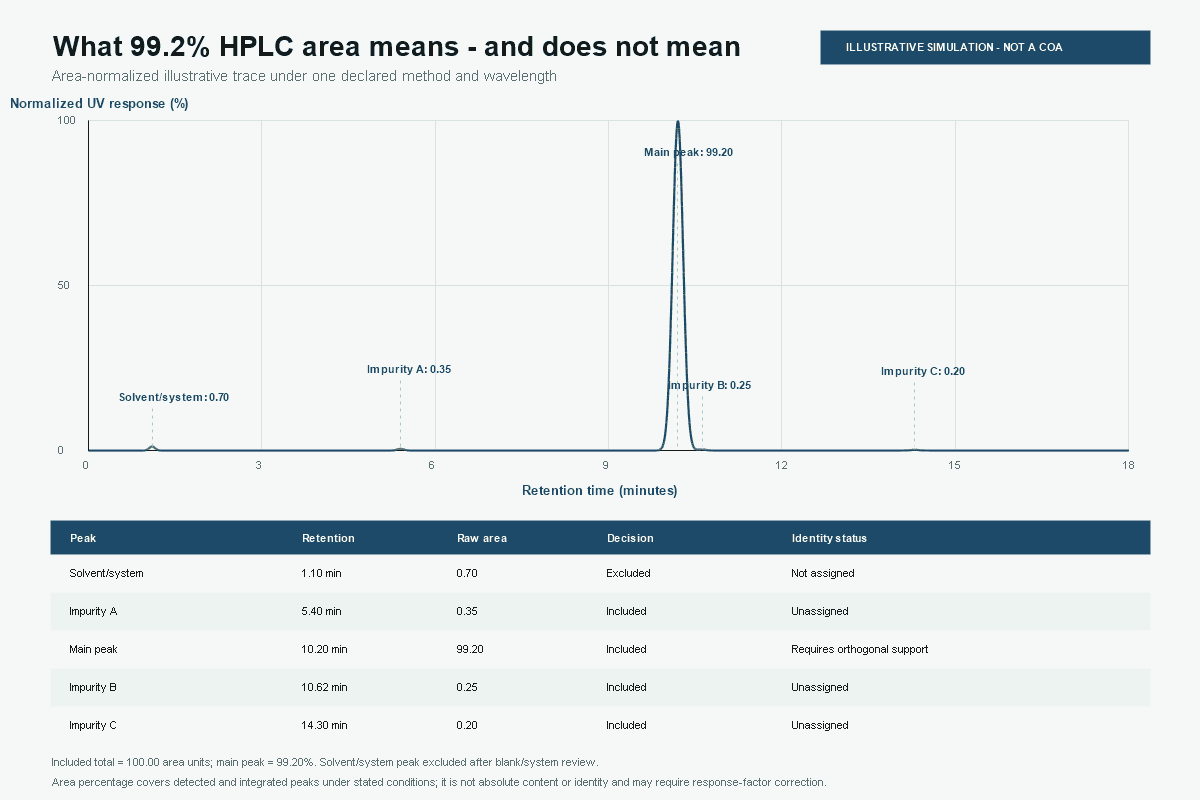

What 99.2% HPLC Area Means

The worked example below is deliberately synthetic. It demonstrates the arithmetic and the effect of an exclusion decision without presenting a plausible-looking trace as evidence about any Apex material, product, lot, or analytical procedure.

Accessible data for the illustrative 99.20% area example

Peak	Retention time	Raw area units	Integration decision	Identity status
Solvent/system	1.10 min	0.70	Excluded after blank/system review	Not assigned
Impurity A	5.40 min	0.35	Included	Unassigned
Main peak	10.20 min	99.20	Included	Requires orthogonal support
Impurity B	10.62 min	0.25	Included	Unassigned
Impurity C	14.30 min	0.20	Included	Unassigned

The included total is exactly 100.00 area units. The 0.70-area solvent/system peak is not in that denominator because the example’s blank/system review excluded it. If the method instead included that signal, changed a reporting threshold, moved the baseline, split a shoulder, or reintegrated a region, the percentage could change even though the physical sample had not.

Area normalization also assumes that the detector responses are being interpreted appropriately. At a stated UV wavelength, different structures can produce different responses; a relative response factor may be needed for some impurity calculations. Work by Preston & Phillips (2016) on quantifying a 21-residue synthetic peptide (in-vitro) through an intrinsic tyrosine signal illustrates the broader point: a quantitative optical result needs a defined signal basis and calibration strategy. That paper reports no quantitative endpoint for chromatographic purity. Uncorrected HPLC peak area is not automatically absolute peptide content.

Why Method Parameters Change the Result

An HPLC result travels with its method. A report should disclose enough detail for a competent analyst to understand the separation and evaluate whether the procedure was fit for its purpose. Generic instrument ranges do not substitute for the conditions that produced the trace.

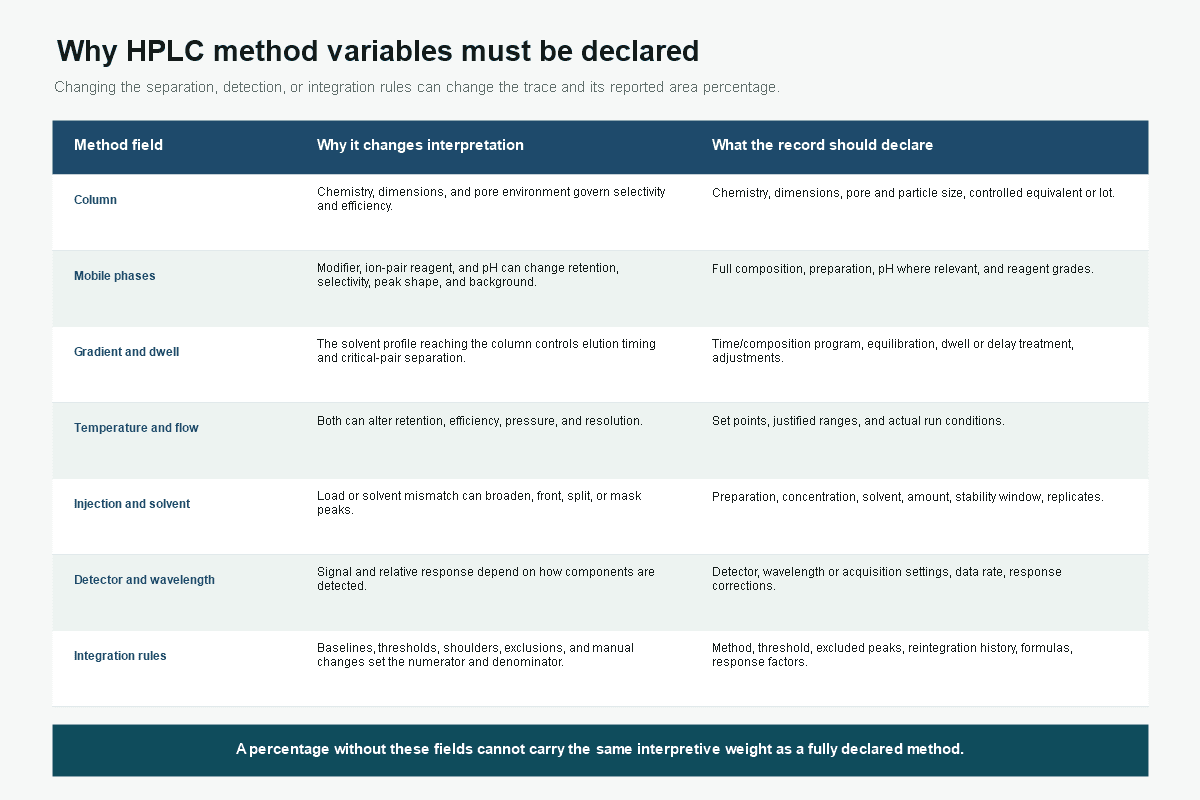

Method fields that control interpretation

Method field	Why it matters	What the record should identify
Column	Stationary-phase chemistry, pore environment, dimensions, and condition govern selectivity and efficiency.	Chemistry, dimensions, pore size, particle size where relevant, lot or approved equivalent, and use history where controlled.
Mobile phases	Organic modifier, acid or ion-pair reagent, and pH can change retention, selectivity, peak shape, and detector background.	Full composition, preparation, pH where relevant, and reagent grades.
Gradient and dwell volume	The solvent profile reaching the column determines when and how closely related components separate.	Time/composition program, equilibration, system dwell or delay treatment, and allowable adjustments.
Temperature and flow	Both can alter retention, efficiency, pressure, and critical-pair resolution.	Set points, controlled ranges justified by development, and actual run conditions.
Injection and sample solvent	Load and solvent mismatch can broaden, front, split, or distort peaks and can mask a weak separation.	Sample preparation, concentration, solvent, injection amount, stability window, and replicate plan.
Detector and wavelength	The signal and relative response of the main component and impurities depend on how detection is performed. Peptide-bond absorbance is commonly monitored near 214 nm, and 280 nm when aromatic residues matter.	Detector type, wavelength or acquisition settings, data rate where relevant, and response corrections.
Integration rules	Baseline, thresholds, shoulder treatment, manual changes, and exclusions directly affect the numerator and denominator.	Integration method, reporting threshold, excluded peaks, reintegration history, formulas, and relative response factors.
Equilibration, wash, and carryover	Incomplete equilibration or retained material can shift retention or create signals unrelated to the current sample.	Equilibration, wash sequence, blanks, carryover acceptance criteria, and corrective actions.

The phase itself can change what separates. The column-and-solvent selectivity study by Mant et al. (2010) is a useful reminder that a successful C18 method does not make C18 universally superior, and a poor separation under one set of conditions does not prove that two components are analytically inseparable.

System Suitability and Method Validation

System suitability asks whether the instrument, method, and analytical controls are functioning together well enough at the time of use. The acceptance criteria must come from the intended analytical task rather than a generic checklist.

• Critical-pair resolution: can the target and the most consequential nearby component be separated adequately for the intended decision?
• Peak symmetry or tailing: is peak shape inside the method-specific criterion?
• Injection and retention repeatability: do replicate controls behave consistently enough for the reported calculation?
• Sensitivity at the threshold: can the procedure detect or quantify the level it claims to report?
• Blank and carryover control: are system, solvent, and prior-injection contributions understood and within their criteria?
• Reference and sensitivity solutions: do standards and controls demonstrate that assignment and low-level reporting remain valid through the run?

ICH Q2(R2) addresses specificity/selectivity, accuracy, precision, reportable range, stability-indicating properties, and orthogonal comparisons. ICH Q14 connects analytical-procedure development to robustness, risk assessment, control strategy, and lifecycle knowledge. A procedure is not stability-indicating merely because it shows extra peaks after storage; specificity for relevant degradation products must be demonstrated under the validated procedure.

HPLC and Mass Spectrometry Answer Different Questions

HPLC and mass spectrometry are complementary, not interchangeable. RP-HPLC provides a method-bound separation and chromatographic-purity result. Mass spectrometry measures ions by mass-to-charge ratio and can support expected-mass consistency or help assign separated impurity peaks. Neither should be promoted as universal proof.

Accessible HPLC-versus-MS evidence matrix

Review dimension	RP-HPLC	Mass spectrometry
Measurement basis	Separation plus detector response.	Mass-to-charge measurement.
Primary signal	Peak area at a declared wavelength or other detector setting.	Ion signal for detected m/z values.
Strongest supported conclusion	Chromatographic purity under the stated method.	Expected-mass consistency and impurity-assignment support.
Cannot establish alone	Identity, absolute content, complete sequence, or stereochemistry.	Complete sequence, stereochemistry, positional/isobaric distinctions, or absolute content in every case.
Essential controls	Blanks, standards, suitability, integration rules, and response treatment.	Calibration, mass accuracy, ionization, charge-state, fragmentation, and assignment controls as applicable.
Review outputs	Trace, method, peak table, integration decisions, and suitability results.	Spectrum, charge states, mass error, fragments, and assignment rationale.

FDA’s adopted ICH Q6A guidance states that identification by one chromatographic retention time is not sufficiently specific and gives combined approaches such as HPLC/MS as examples of greater specificity. Even then, the claim should match the data. A correct intact mass may not distinguish sequence arrangements, stereochemistry, positional isomers, or isobaric species. The review by Badgujar et al. (2024) is especially relevant: an ordinary achiral HPLC method cannot establish D/L purity. That review reports no quantitative result of its own.

LC-HRMS and tandem-MS workflows can connect a separated chromatographic peak with mass-based structural evidence. Studies by Li et al. (2018) using LC-HRMS and Huo et al. (2022) using HPLC-QTOF-MS/MS, together with the synthetic-peptide characterization review by Lian et al. (2021), a narrative review that reports no single quantitative finding, show why separation and mass-based assignment are stronger together. For deeper method coverage, continue to the mass spectrometry peptide-verification guide.

How to Review an HPLC Result on a COA

A COA summary can be concise, but the underlying result should still be auditable. Use the following checklist to decide whether a displayed percentage is interpretable. The separate COA guide covers the full document and lot-matching workflow.

1. Match the record to the material. Confirm the item, lot or batch identifier, test date, report identifier, and issuing laboratory.
2. Name the test. Determine whether the result is an RP-HPLC related-substances method, an assay, another chromatographic procedure, or an unspecified percentage.
3. Find the method conditions. Look for column, mobile phases, gradient, temperature, flow, detector/wavelength, sample preparation, injection, and run information or a controlled method reference.
4. Inspect the complete trace and peak table. A cropped main peak without axes, run window, integrations, or minor-peak data is not enough to reconstruct the percentage.
5. Audit the denominator. Identify thresholds, excluded solvent/system peaks, unknown peaks, shoulder treatment, manual integrations, and any relative response factors.
6. Check system suitability. Verify that the result reports the criteria relevant to resolution, symmetry, repeatability, sensitivity, blanks, and carryover.
7. Separate assignment from dominance. Ask what makes the main peak the target: a validated procedure, reference standard, diode-array behavior, MS evidence, or another qualified basis.
8. Match the conclusion to the test. Report chromatographic purity as chromatographic purity. Do not extend it to identity, peptide content, fill, potency, sterility, safety, or human suitability.
9. Check orthogonal evidence separately. Review the actual MS or other identification output and its acceptance criteria instead of assuming it is implied by the HPLC percentage.

The 99% purity explainer addresses the broader experimental reason a purity specification may matter. This page is narrower: it explains exactly what one HPLC area percentage can support and where its boundary lies.

Common HPLC Interpretation Errors

Sources and Method Scope

This explainer uses source-ranked analytical guidance and freshly verified literature. The regulatory guidances describe analytical-development and validation principles; they do not establish that Apex uses a particular pharmaceutical release method. No current Apex purity, every-batch, or testing-procedure claim is made here.

• USP General Chapter <621>, Chromatography — chromatographic fundamentals and system-suitability framework.
• FDA, Analytical Procedures and Methods Validation for Drugs and Biologics — procedure content, controls, suitability, calculations, and reporting.
• ICH Q2(R2), Validation of Analytical Procedures — specificity/selectivity, range, validation, and stability-indicating properties.
• ICH Q14, Analytical Procedure Development — robustness, control strategy, and lifecycle development.
• ICH Q6A as adopted by FDA — identification specificity and combined analytical approaches.
• Retention and selectivity: Mant & Hodges (2006), context-dependent peptide retention (a published correction exists for this record and could not be retrieved at the July 2026 freeze; the findings drawn from it are directional and the method parameters quoted are the uncorrected published values), and Mant et al. (2010), column and solvent selectivity.
• Optical peptide-standard quantification context: Preston & Phillips (2016), intrinsic tyrosine-signal quantification.
• Peptide stereochemical-purity limitation: Badgujar et al. (2024), enantiomeric purity of synthetic peptides.
• LC-MS impurity characterization: Li et al. (2018), synthetic human C-peptide impurities; Huo et al. (2022), HPLC-QTOF-MS/MS impurity characterization; and Lian et al. (2021), LC-MS characterization review; and Jaworska et al. (2012), two-dimensional HPLC-CE octreotide impurity profiling.
